Thermocouple "K" with bayonet lock

Monitoring system for iron metallurgy electrical furnaces

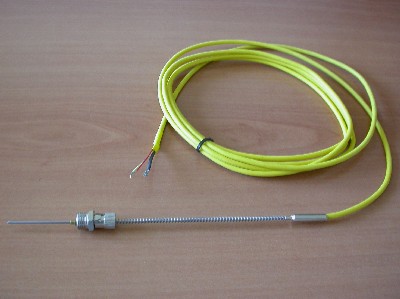

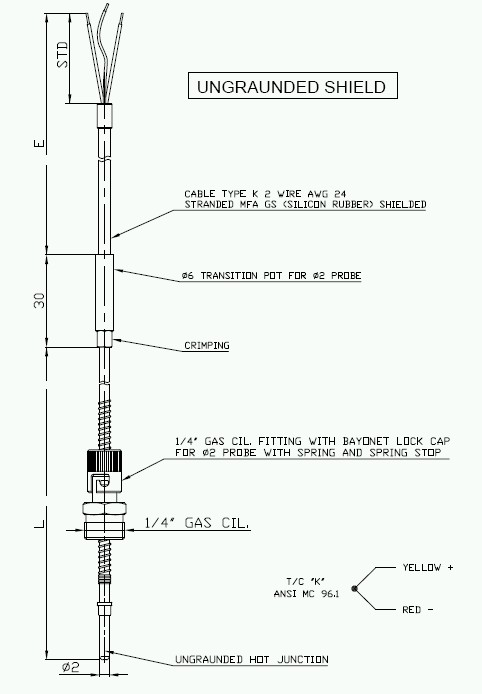

Single elemnte thermocouple type "K" Ø2 with 1/4" GAS CIL. bayonet lock cap fitting. (cod. D004255A)

Technical data




Calibration: Single element thermocouple type 'K' according to ANSI MC96.1
Type of construction: With densely packed magnesium oxide insulation and ungrounded hot junction
Sheath material: INCONEL 600 for thermocouple type K
Temperature limit: Thermocouple K: 1150°C
Insulation Resistance: 100 M ohm with a 500 Vd.c
Extension cable cable type k 2 wire awg 24 stranded mfa gs (silicon rubber) shielded
Process connection 1/4" gas ci
