DOMESTIC OVEN PROBE
There are no translations available

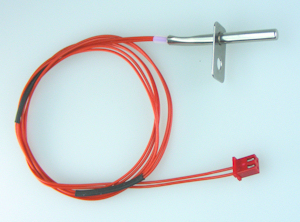

Probe for domestic oven



Technical data




Sensing element S143011A: NTC thermistor, 1000 Ohm (200°C), Beta (100/200) = 4537
S143012A: Pt 1000 Ohm RTD, class B according to IEC 751
Cable No. 2 nickel plated copper unipolar AWG 24 (stranded wires) conductors, with PFA insulation (color red).
JST XHP-2 connector, color red, at the end of conductors

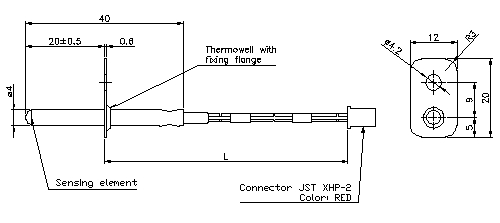

Construction Sensing element is placed into a stainless steel thermowell (ø6 mm, length 40 mm) which has a fixing flange (in stainless steel too)
Temperature limits -50°C ÷ 250°C continuous (280°C not continuous)
Dielectric strength 1500 V AC
Insulation resistance >500 MOhm at 500 V DC
