RTD FOR MEDIUM TEMPERATURES |

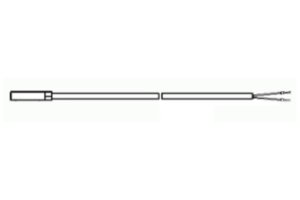

| Temperature
probe with FEP insulation for temperature up to 200°C |
|
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Sensing element |
Pt 1000 Ohm
class B, according to IEC 751 |

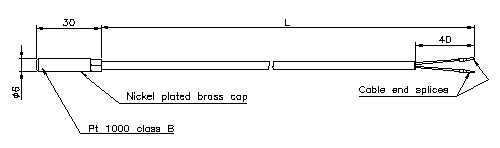

| Cap |
ø6 mm, 30 mm
length, nickel plated brass |
| Cable |
2 tin plated
copper conductors, AWG 24 (stranded wires), primary insulation in FEP,
secondary insulation in siliconic rubber. |
| Temperature limits |
-50°C ÷ 180°C
continuous (200°C for 3000 hrs) |
| Insulation resistance |
>500 MOhm at
1000 V DC |
| Degree of protection |
IP65 |
| Marking on cap |
Week, year of
manufacture and identification code | |
|
