PYROLITHIC OVEN PROBE

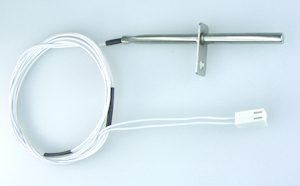

Probe for pyrolithic oven

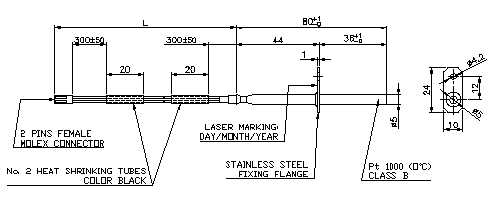

Technical data
Sensing element Pt 1000 Ohm RTD class B according to IEC 751
Cable No. 2 unipolar tin plated copper AWG 24 (stranded wires) conductors, insulation with MFA, color white.
Female Molex connector (color white) at the end of the conductors.
Construction Sensing element is placed into a stainless steel thermowell which has a fixing flange in stainless steel too.
Dielectric strength 1500 V AC
Insulation resistance 1000 MOhm at 250 V DC
