THERMOWELL

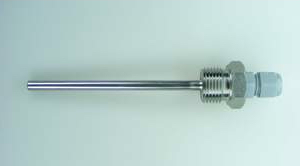

Thermowell for rubber probes

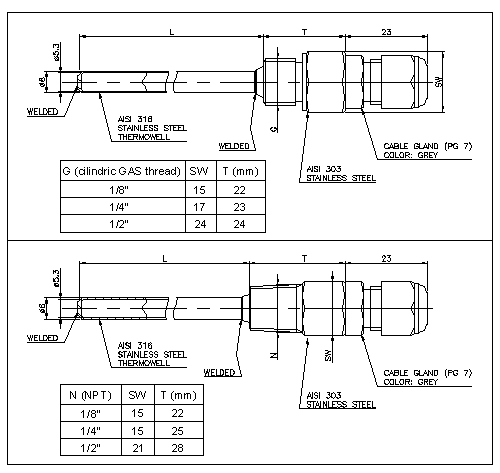

Technical data




Process connection 1/8", 1/4", 1/2" CIL. GAS (GAS UNI 338)
1/8", 1/4", 1/2" NPT (ASA B2.1)
Material Stainless steel
Probe diameter (mm) ø5
Probe blocking Cable gland PG7
Tube outer diameter (mm) ø6
Size of wrench for connection Clindric GAS connection:
SW 15 for 1/8"
SW 17 for 1/4"
SW 24 for 1/2"

NPT connection:
SW 15 for 1/8"
SW 15 for 1/4"
SW 21 for 1/2"
Plug dimensions (mm) Cilindric GAS connection:
22 mm for 1/8"
23 mm for 1/4"
24 mm for 1/2"

NPT connection:
22 mm for 1/8"
25 mm for 1/4"
28 mm for 1/2"
