IKS (SINGLE INSULATION)

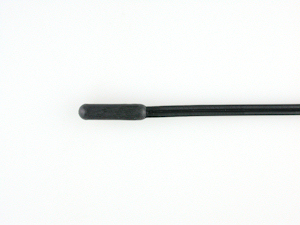

Thermoplastic probe with single insulation cable
Very low-cost integral thermoplastic probe with single insulation cable.

Technical data




Cable data Flat cable (size 3,5x1,7 mm) with 2 stranded copper wires, 0.25 mm² (24 AWG).
Insulation: thermoplastic elastomer rubber.
Halogen free cable.
Insulation resistance 100 MOhm at 1000 V DC
Dielectric strength 2500 V AC
Temperature range -50°C ÷ 105°C
Sensing element Thermistor.
On demand, RTD Pt 100 Ohm at 0°C (class B) or Pt 1000 Ohm at 0°C (class B) according to IEC 751.
Type of costruction Sensor and extension cable moulded together as one hot vulcanised unit
Degree of protection IP 67
Option Stainless steel case ø6 mm, length = 50 mm
