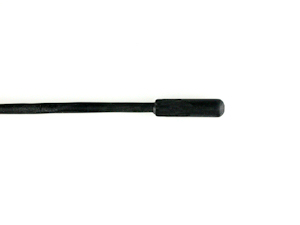

IKR Reinforced insulation NTC probe
Reinforced insulation NTC probe
The sensor is encapsulated in a tip overmoulded on the cable with 2 layer of thermoplastic rubber.
This probe is watertight even after freeze/thaw cycling.


Technical data




Degree of protection Waterproof to IP 68
Temperature range -50°C ÷ 105°C
Cable 0.30 sqmm stranded copper, first insulation PP, secondary insulation polyester tape, third insulation thermoplastic elastomer. Halogen-free cable. DIN VDE approved.
Tip Thermoplastic elastomer overmoulded on the cable
Insulation resistance 100 MOhm at 1000 V DC
Dielectric strength 3750 V AC
Cable length From 400 mm to 4000 mm (others available on demand)
