| CONTACT PROBE (IP65/67) FOR PIPE TEMPERATURE MEASUREMENTS |
 |

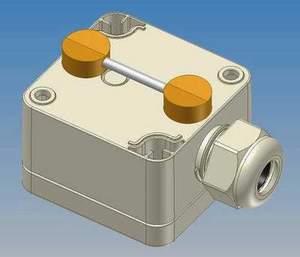

| Contact probe for pipe temperature measurements with plastic cable junction box (50x52x35 mm). Setting block are made of brass with a "V" profile in order to be placed on several dimensions of pipes. Sensing element is directly annealed in one setting block. Probe is fixed by a metallic lace (not provided). Cable junction box has a terminal (2 or 4 pins versions) for electrical connection. Sensing element can be a RTD (with ohmic output or signal range 4÷20mA output) or a NTC thermistor with ohmic output. |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Sensing element |
RTD or NTC. RTD version has a 4÷20mA output option |
| Temperature range |
-35°C ÷ 90°C |
| Min. insulation resistance |
100 MOhm at 100 Vdc |

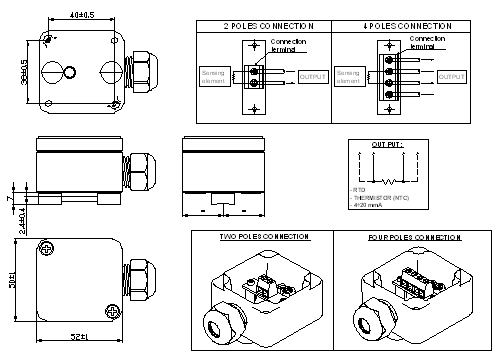

| Connection terminal |
2 or 4 POLES |
| Cable diameter for cable gland |
Ø5 ÷ Ø10 mm |
| Degree of protection |
IP65/IP67 |
| Pipe diameter |
Ø10÷Ø100 mm |
|
|
