PROBE FOR MEASUREMENTS IN DUCTS |
| PROBE (IP65/IP67) FOR TEMPERATURE MEASUREMENTS IN CONDUCTS |
 |

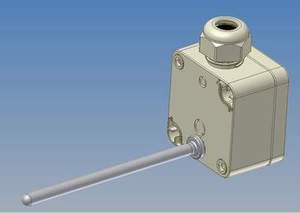

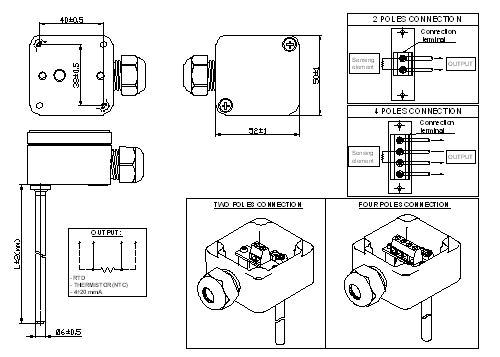

| Probe for ducts temperature measurements with plastic junction box (50x52x35 mm) with cable gland. Stem ø6 mm stainless steel sheath in order to protect the sensing element from aggressive environmental conditions. Cable junction box has a terminal (2 or 4 pins) for electrical connection. Sensing element can be a RTD (with ohmic output or signal range 4÷20ma output) or a NTC thermistor with ohmic output. Probe has accessories for bearing setting (depending on requests) such as flangescompression fittings, thermowells with cable gland or flange. |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Sensing element |
RTD or NTC. RTD has the 4÷20mA output option |
| Temperature range |
-35°C ÷ 90°C |
| Min. insulation resistance |
100 MOhm at 100 Vdc |
| Connection terminal |
2 or 4 POLES |
| Diameter cable for cable gland |
Ø5 ÷ Ø10 mm |
| Degree of protection |
IP65/IP67 |
|
|
