ROOM TEMPERATURE PROBE WITH PLASTIC PIERCED WELL |
PROBE (IP60) FOR ROOM TEMPERATURE MEASUREMENTS |
|

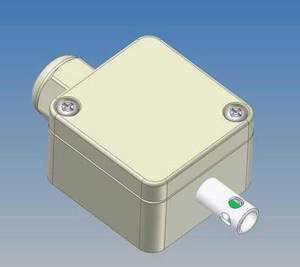

Room temperature probe with plastic junction box (50x52x35 mm). Thermowell is made of plastic with holes next to the sensing element in order to obtain a fast response time. Cable junction box has a terminal (2 or 4 pins versions) for electrical connection. Sensing element can be an RTD (with ohmic output or with signal range 4÷20mA) or an NTC thermistor with ohmic output. |
|
|
|
Technical data |
|
|
|
|
|
Sensing element |
RTD or NTC |
Temperature range |
-35°C ÷ 90°C |

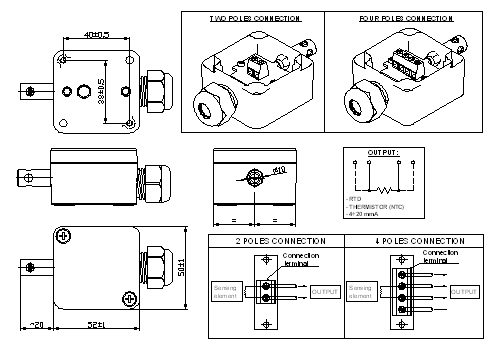

Terminal connection |
2 or 4 POLES |
Cable diameter for cable gland |
Ø5 ÷ Ø10 mm |
Degree of protection |
IP60 |
Wall set screws |
Auto-threading 3.5 screws (for ø6 screw plugs) |
Wall set inter-axis of screws |
38x40 mm |
|
|
