TPRL MODULE
4 LOGICAL INPUTS MODULE / 4 RELAY OUTPUTS
This module transforms the 4 TwinPID logical outputs into 4 single change relay outputs.
It has been studied to be associated to basic TwinPID with logical outputs.

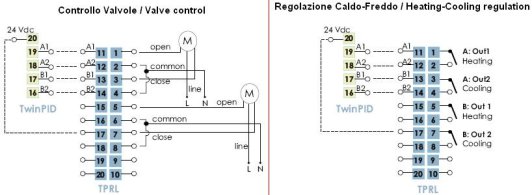

By this module, the TwinPID can manage 2 independent processes in heat / cool relay mode or relay-servovalve (open / close) control.


Technical data




Dimensions 55 x 109 x 75 mm (connectors included)
Electrical feeding Auto-feeding from TwinPID
Environmental conditions Temperature: 0°C ÷ 50°C
Humidity: 10% ÷ 95% not condensing
Output 4 SPST relays, 2 A at 250 V AC
