WITH PTFE SEALANT GLAND
There are no translations available

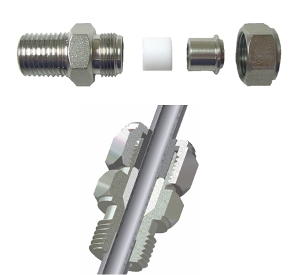

SLIDING COMPRESSION FITTINGS
For direct immersion mounting of all thermoelement probes

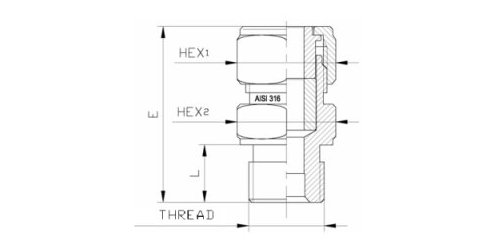

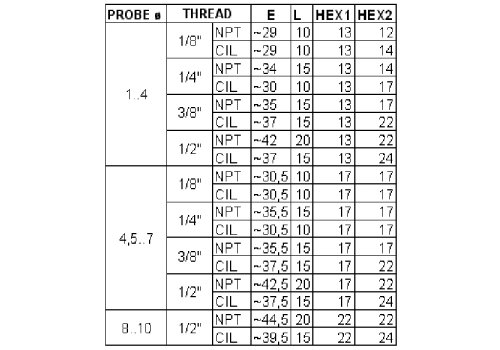

Technical data




For probes with an outer diameter (mm) ø1 - ø1.5 - ø2 - ø3 - ø4 - ø4.5 - ø5 - ø6 - ø7 - ø8 - ø9 - ø10

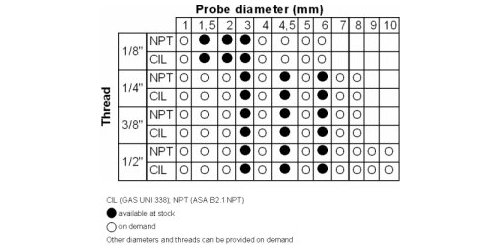

Process connection 1/8" NPT (ASA B2.1) or CIL (GAS UNI 338) for:
- ø1.5, ø2, ø3 at stock
- ø1, ø4, ø4.5, ø5, ø6 on demand

1/4" NPT (ASA B2.1) or CIL (GAS UNI 338) for:
- ø3, ø4.5, ø6 at stock
- ø1, ø1.5, ø2, ø4, ø5, ø7, ø8 on demand

3/8" NPT (ASA B2.1) or CIL (GAS UNI 338) for:
- ø3, ø4.5, ø6 at stock
- ø1, ø1.5, ø2, ø4, ø5, ø7, ø8 on demand

1/2" NPT (ASA B2.1) or CIL (GAS UNI 338) for:
- ø3, ø4.5, ø6 at stock
- ø1, ø1.5, ø2, ø4, ø5, ø7, ø8, ø9, ø10 on demand

OTHER DIAMETERS AND THREADS ON DEMAND
Body material AISI 316 s.s.
Type of sealing Sliding connection with PTFE sealant gland
Max exercise pressure 20 bar
Max exercise temperature 120°C
Marking Material and lot number
Notes Optimized design to increase resistance to vibrations of the connection-probe system
