| SLIDING
COMPRESSION FITTINGS |
|
| For direct immersion mounting of all
thermoelement probes
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Suitable for probe
diameter (mm) |
ø1 - ø1.5 - ø2 -
ø3 - ø4 - ø4.5 - ø5 - ø6 - ø7 - ø8 - ø9 - ø10 |

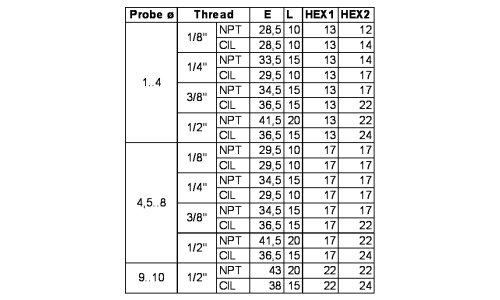

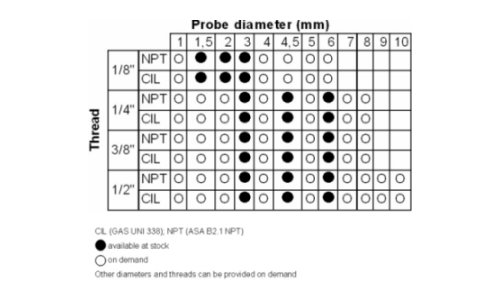

| Thread |
1/8" NPT (ASA
B2.1) or CIL (GAS UNI 338) for :
- ø1.5, ø2, ø3 available at stock
- ø1, ø4, ø4.5, ø5, ø6 on demand
1/4" NPT (ASA B2.1) or CIL (GAS UNI 338) for :
- ø3, ø4.5, ø6 available at stock
- ø1, ø1.5, ø2, ø4, ø5, ø7, ø8 on demand
3/8" NPT (ASA B2.1) or CIL (GAS UNI 338) for :
- ø3, ø4.5, ø6 available at stock
- ø1, ø1.5, ø2, ø4, ø5, ø7, ø8 on demand
1/2" NPT (ASA B2.1) or CIL (GAS UNI 338) for :
- ø3, ø4.5, ø6 available at stock
- ø1, ø1.5, ø2, ø4, ø5, ø7, ø8, ø9, ø10 on demand
OTHER DIAMETERS AND THREADS CAN BE PROVIDED ON DEMAND
|
| Body material |
AISI 316 s.s. |

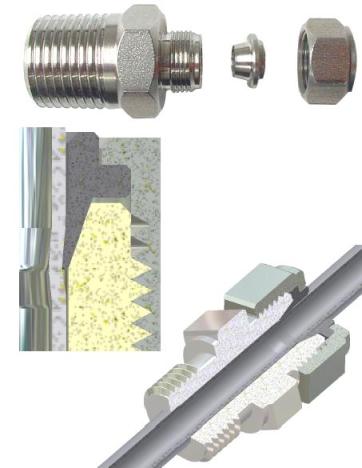

| Type of sealing |
Sliding
connection with AISI 316 ferrule |
| Max exercise pressure |
100 bar.
Correct screwing up at 3/4 of turn |
| Marking |
Material and
lot number | |
|
