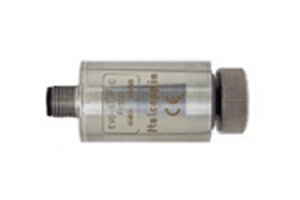

| TEMPERATURE
TRANSMITTER WITH INTEGRATED M12 CONNECTOR AND 4 ÷ 20mA OUTPUT |
|
| High accuracy temperature transmitter with
software set up. The integrated connections allow to mount the
transmitter directly on the sensor
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Absolute accuracy |
<=0.1% of
span (more then 0.3°C) |
| Effect of supply
voltage variation |
=0.005% of span
/ VDC |
| EMC immunity
influence |
<=0.5% of
span / Vdc |
| General
specifications |
Supply Voltage:
8 ÷ 35Vdc
Internal consumption: 25mW ÷ 0.8W
Signal/noise ratio:
Min. 60dB
Input signal dynamics: 19 bit
Output Signal dynamics: 16 bit |
| Input |
Temperature
measurement range: -200°C ÷ + 850°C
Input connection M12x1 female in
accordance with VDE0627 (suitable for TRM and TRC probes) |
| Observed authority
Requirements |
EMC 89/336/EEC
Emission
EN 50 081-1, EN 50 081-2
Immunity EN 50 082-1,EN 50 082-2, EN61326-1 |
| Output |
Signal Range: 4
÷ 20 mA
Updating time: 135 ms
Output connection M12x1 male in
accordance with VDE0627 |
| Sensor error
detection |
Programmable:
3.5...23 mA
NAMUR NE43 Upscale: 23 mA
NAMUR NE43 - Downscale: 3.5
mA |
| Temperature
coefficient |
<=0.01% of
span / °C (more than 0.01°C / °C) |
| Working environment
specifications |
Humidity:
0/100% RH
Temperature: -40° ÷ + 85°C |
| Body Construction |
AISI316
Tightness
IP67 | |
|
