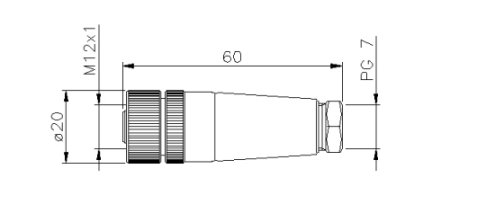

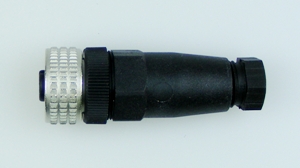

M12 STRAIGHT OUTLET CONNECTOR
CONNECTORS FOR EASY USE OF SEVERAL KIND OF CABLES (WITH DIFFERENT LENGTHS AND TYPE OF INSULATION) BY MEANS OF TERMINAL POTS WITH SCREWS, GRANTING A HIGH DEGREE OF PROTECTION (IP-67)


Technical data




Suitable for probes type TRM - TRC - TCSV 12 - EVOTRA - EVOSTOP
Connection Female connector, plug in and screw on type, with body in moulded Nylon and M12x1 metal thread (to DIN-VDE 0627)
Degree of protection IP 67
Temperature MAX 90 °C
Cable diameter From ø4 mm to ø6 mm, 0.75 mm³ max.
Types With straight outlet
