ATITR
There are no translations available

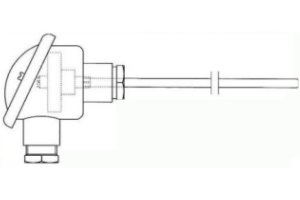

RESISTANCE TEMPERATURE DETECTOR WITH CONNECTION HEAD
RTD probes with connection head manufactured using densely packed magnesium oxide insulated stainless steel sheathed cable

Technical data




Sensing elements: Single or duplex RTD Pt100 ohm 0°C to IEC 751
Class B, A or AA
Temperature range: Class B: -50÷500°C
Class A: -30÷350°C
Class AA: 0÷250°C
Type of construction: With densely packed magnesium oxide insulated cable
Probe: 4, 6, 8* Wires
*only Ø6mm
Min. bending radius: 3-times the outer diameter 'd' (except the sensing tip wich lenght is 50mm)
Manifacturing Lenghts 'L' (mm): Da 100 a 1.500 (con cadenza ogni 5mm)
*Da 1.500 a 3.000 (con cadenza ogni 25mm)
*Da 3.000 a 5.000 (con cadenza ogni 50mm)
*Da 5.000 a 10.000 (con cadenza ogni 100mm)
*Da 10.000 a 20.000 (con cadenza ogni 500mm)
*Da 20.000 a 50.000 (con cadenza ogni mt)
*Lunghezze non disponibili in Classe AA

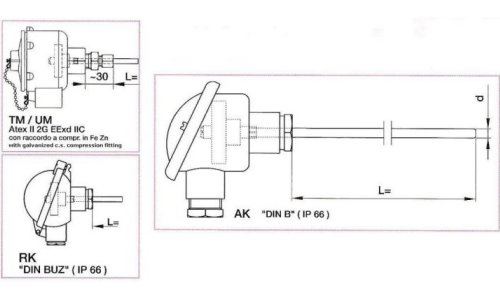

Connection Head: DINB in alluminio (uscita PG 16)
DIN BUZ in alluminio (uscita PG 16)
Atex II 2G EExd IIC in alluminio (uscita 1/2")
Atex II 2G EExd IIC in alluminio (uscita 3/4")
Electrical connection: Integral type Nylon terminal block
TRANSMITTER 4÷20mA (type and range to be specified)
Insulation resistance: 100 Mohm with 100Vdc
