RTD PROBE ø6 WITH CONVENTIONAL INSULATION GLASS-FIBER CABL |

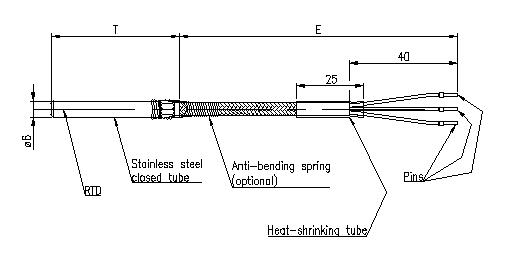

| RTD probe in stainless steel ø6 tube with glass-fiber cable |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| RTD |
Pt 100 Ohm a 0°C class A or B (IEC 751) |
| Cable |
Cable with 2 stranded copper conductors, AWG 22
Color of conductors: one white, two red
Primary and secondary insulation: glass-fiber
Tin-plated copper armor
Pins crimped at the end of the cable |
| Tube |
ø6 mm, stailess steel, crimped on the cable
Length T starting from 30 mm |
| Temperature limit |
350°C |
| Insulation resistance |
>100 MOhm at 100 V DC |
| Accessories |
Anti-bending spring (optional) |
|
|
|
ITALCOPPIE
