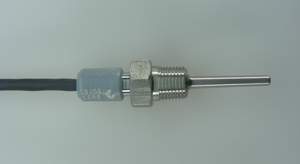

RESISTANCE TEMPERATURE DETECTOR WITH CABLE |
|

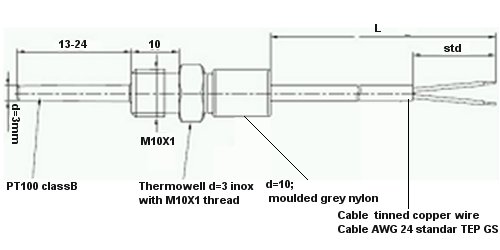

Pt1000 cl. B RTD with inox thermowell, M10x1 process connection and 24 mm immersion, and Cable tinned copper 2 wire cable AWG 24 stranded FEP GS |
|
|
|
Technical data |
|
|
|
|
|
Sensing element |
Pt 100 ohm at 0 °C to IEC 751 class B |
Temperature range |
-50°C ÷ 120°C |
Insulation resistance |
100 MOhm with 500 V DC |
Case material |
AISI 316 s.s. |
Marking |
Each probe is permanently marked with the exact ohmical calibration test value at 0°C, the manufacturing date and traceability code |
Process connection |
M10x1 thread |
Type of construction |
Screw in RTD probe for direct immersion, one piece construction |
|
|
