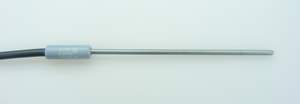

| RESISTANCE TEMPERATURE DETECTOR PROBE, HIGH QUALITY AND LOW COST TYPE |
 |
| RTD probe manufactured using densely packed magnesium oxide insulated stainless steel sheathed cable with MOULDED feedthrough. Very strong sensor with low cost for a great variety of applications. |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Type of construction |
With densely packed magnesim oxide (MgO) insulated cable |
| Feedthrough tube |
In MOULDED Nylon ø8mm x 25mm length
Temperature MAX 120°C |
| Sensing element |
Pt 100 Ohm at 0°C according to IEC 751 class B |
| Insulation resistance |
100 MOhm with 100 V DC |
| Extension cable |
Stranded copper wires 2X0,32 mm² ( 22 AWG ) with single conductor and overall silicon rubber insulation
Temperature MAX 180 °C |
| Temperature range |
Class B: -50°C ÷ 500°C |
| Marking |
Each probe is permanently marked with the exact ohmical calibration test value at 0°C (loop resistance included), the manufacturing date and the traceability code |
| Sheath material |
AISI 316 s.s. with an outer diameter of 3 mm |
| Minimum bending radius |
Three times the outer diameter (except the sensing tip which length is 30 mm) |
|
|
