| MINERAL INSULATION THERMOCOUPLE |
 |
| |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Type of thermocouple |
"K" or "J" thermocouple, according to IEC 584 |
| Type of construction |
With densely packed magnesium oxide (MgO) insulated cable |

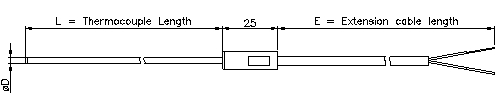

| Diameter D (mm) |
ø0.5 - ø1 - ø1.5 - ø2 - ø3 - ø4.5 |
| Feedthrough tube |
In MOULDED Nylon ø8mm x 25mm length
MAX temperature 120°C |
| Insulation resistance |
100 MOhm with 100 V DC |
| Extension cable |
Stranded compensated wires 2x0.2 mm² (24 AWG) with single conductor and overall silicon rubber insulation
MAX temperature: 180°C |
| Temperature range |
1150°C for type "K" thermocouple
600°C for type "J" thermocouple |
| Marking |
Each probe is permanently marked with the thermocouple type, the manufacturing date and the traceability code |
| Sheath material |
INCONEL 600 for type "K" thermocouple
AISI 304 for type "J" thermocouple |
| Minimum bending radius |
|
|
