| THERMOCOUPLE TYPE ''K'' OR "J" WITH COMPENSATED ''STANDARD'' CONNECTOR |
 |
| Thermocouple probe with MOULDED ON compensated standard male connector (also available as duplex element probe). Very strong sensor with low cost for a great variety of applications, especially suitable for heavy duty services like incineritors, foundries, thermal treatments and so on." |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Type of thermocouple |
Single or duplex element thermocouple type 'K' or 'J' according to IEC 584 class 2 (ASTM E 230) |
| Connection |
Compensated MALE 'standard' connector with body IN MOULDED Nylon according to ASTM E 1129/E 1129M-91
Temperature MAX 120°C (200°C for 60 seconds) |
| Insulation resistance |
100 MOhm with 500 V DC at room-temperature |
| Temperature limit |
Thermocouple K: 1150°C
Thermocouple J: 600°C |

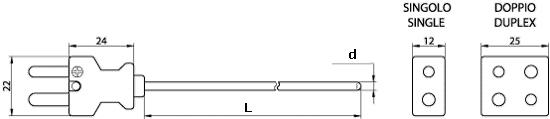

| Lenght 'L' (mm) |
Thermocouple K: 250, 500, 750, 1000, 1250, 1500
Thermocouple J: 150, 200, 250, 500, 1000 |
| Sheath diameter 'd' (mm) |
Thermocouple K: Ø2, Ø3, Ø4.5, Ø6, Ø8
Thermocouple J: Ø2, Ø3 |
| Minimum bending radius |
Three times the outer diameter |
| Sheath material |
Thermocouple K: INCONEL 600
Thermocouple J: AISI 304 |
| Type of construction |
With densely packed magnesium oxide insulation and ungrounded hot junction |
| Accessories |
Standard female connectors - Standard extension cables |
|
|
