CABLE WITH STANDARD COMPENSATED CONNECTORS |

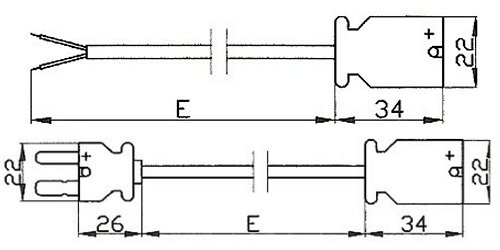

| Extension cable with MOULDED STANDARD CONNECTOR. For exclusive use with TCM thermocouples |
 |

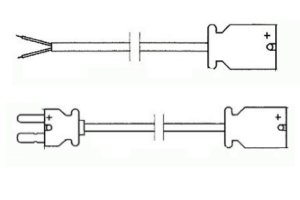

| Exention cables with socket and cable or alternative with socket/cable/plug |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Calibration type: |
Type "K" according to IEC 584, ANSI or DIN with relevant colour-coding |
| Connection: |
Compensated standard type connectors with body in moulded nylon to ASTM E 1129/E 1129M-91 |
| Temperature limit: |
120°C for the connectors (200°C for 60')
180°C for the extension cable |
| Cable data: |
Stranded wires 2x0,20 mm² (24AWG) with single conductor and overall silicon rubber insulation |
|
|
