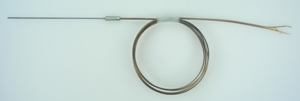

| THERMOCOUPLES FOR MOULDS WITH METALLIC TRANSITION POT FOR HIGH TEMPERAURE |
 |
| Thermocouples with MgO insulation with colored kapton cable and metallic transition pot for high temperature (T max 400°) |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Type of thermocouple |
Single element type 'J' or 'K' (*) thermocouple according to IEC 584 class 2 (ASTM E 230)
(*) Type 'K' available on demand |
| Type of construction |
With densely packed magnesium oxide insulation and ungrounded hot junction |
| Sheath material |
Thermocouple K: INCONEL 600
Thermocouple J: AISI 304 |
| Temperature limit |
Maximum temperature of operation of the sensing junction is 600°C
Maximum temperature of operation of the transition pot is 400°C |
| Sheath diameter 'd' |
d=1±0.1mm
d=1.5±0.1mm |
| Minimum bending radius |
Three times the outer diameter |
| Extension cable |
Cable type J IEC 584 2 wire cable AWG 24 stranded PTFE + Kapton Kapton |
| Insulation resistance |
Rmin=100MOhm a 100Vdc |
|
|
