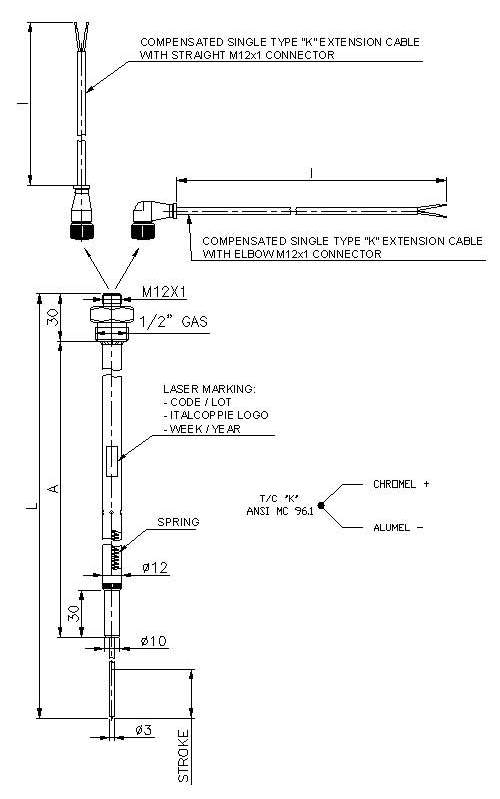

Thermocouple "K" Ø3mm with spring-load system |
|
| Monitoring system for iron metallurgy electrical
furnaces |
|
| The thermocouple with spring-load system and
M12 extension cable is made specifically to with-stand severe
environmental conditions and to be easily set up with minimum
maintenance standoff. (cod. D004231A)
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Accessories |
Extension cable
with straight or elbow M12x1 connector |
| Calibration |
Single element
thermocouple type 'K' according to ANSI MC96.1 |
| Temperature limit |
Thermocouple K:
1150°C
|
| Connection |
4 Pins male
connector with M12X1 metal thread |
| Process connection |
1/4" GAS thread |
| Marking |
Laser marking:
- Code / Lot
- Italcoppie logo
- Week / Year
|
| Type of construction |
Densely packed
magnesium oxide insulation and ungrounded hot junction |
| Insulation resistance |
100 M Ohm with
500 V DC |
| Sheath material |
INCONEL 600 for
thermocouple type K | |
|
