| 4 MM O.D. PROBE FOR ROOM TEMPERATURE MEASUREMENTS. T
Max 150°C |
|

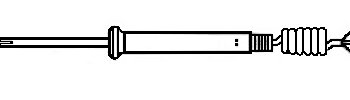

| Room temperature probe with plastic cable
junction box (50x52x35 mm). Sensing element is annealed at the bottom of
the box; protection from external environment is guaranteed by
application of an adhesive metallic label. Sensing element position
makes this probe particularly suitable for contact measurements.
Cable junction box has a terminal (2 or 4 pins versions) for electrical
connection.
Sensing element can be a RTD (with ohmic output or with signal range
4÷20mA) or a NTC thermistor with ohmic output.
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Connection: |
Upon request
also avaiable with different type of connectors |
| Handle: |
Moulded
thermoplastic elastomer rubber handle (TPE) |
| Type of cable: |
4 copper wire
spiral-wound extension cable with, polyurethane insulation (approx. max
length 1,5 mts) |
| Type of RTD‘s: |
1 Pt 100 ohm at
0°C to IEC 751 class B | |
|
