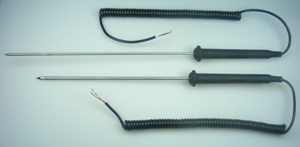

| 3 MM OR (GRADUATED) 4 MM O.D. NEEDLE PROBE FOR
PENETRATION AND IMMERSION. (T Max 400°C) |
|
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Sensing element |
Pt 100 ohm at
0°C according to IEC 751 class B or class A |
| Handle |
Moulded
thermoplastic elastomer rubber handle (TPE) |
| Temperature range |
Sensing
element: -50°C ÷ 400°C
|
| Protection |
IP 66 |
| Connection |
Available with
different type of connectors, on demand |
| Type of cable |
4 copper wire
spiral-wound extension cable with polyurethane insulation (approx. max
length 1,5 mts) |

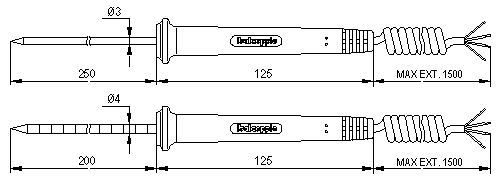

| Needle-sharp shaft |
AISI 316 steel,
in two versions:
ø3 mm (non-graduated shaft, 250mm length);
ø4 mm (graduated shaft, 10mm resolution, 200 mm length) |
| Time of response |
5 sec for ø3mm
shaft;
10 sec for ø4mm shaft | |
|
ITALCOPPIE
