SPZ

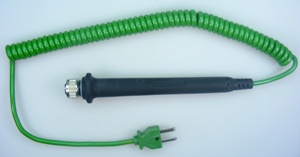

UNIVERSAL HANDLE FOR USE WITH TYPE ''K'' THERMOCOUPLES (TCS V12) THAT TRANSFORMS ANY "TCSV12" SERIES "K" THERMOCOUPLE IN A PORTABLE PROBE
Handle for mounting the TCSV12 thermocouples (see relevant Data Sheet) to offer a wide range of dimensions (several diameters and lengths) by means of any easy interchangeability"

Technical data




Type of thermocouple Type 'K' thermocouple, in accordance with IEC 584
Connection Connection by means of compensated male miniature connector
Handle Thermoplastic elastomes rubber (TPE) handle with M12 metal threaded screw lock connection for TCSV12 type 'K' thermocouples
Type of cable Spiral-wound compensated extension cable with polyurethane insulation (approx max length 1,5 mts.) and miniature male connector. Coloration in accordance with IEC 584.
