DOUBLE K/J THERMOCOUPLE
There are no translations available

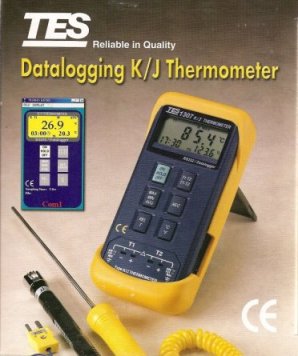

Portable thermometer with 2 input channels (K or J configurable), and data acquisition feactures (store up to 8000 reading)

Technical data





Environmental conditions Temperature:0÷40ºC
Humidity:10%÷80% (non condensing)
Inputs Double input for K or J thermocouples
Measurement range Thermocouple K: -190 ÷ 1333°C (-310 ÷ 2431°F)
Thermocouple J: -190 ÷ 760°C (-310 ÷ 1400°F)
Accuracy @23°C ±5ºC Thermocouple K range -190° ÷ 0°C :± (0,5% reading + 0,7°C)
Thermocouple K range 0° ÷ 1000°C :± (0,1% reading + 0,5°C)
Thermocouple K range -1000° ÷ 1333°C :± (0,2% reading + 1°C)
Thermocouple J range -190° ÷ 0°C :± (0,5% reading + 0,7°C)
Thermocouple J range 0° ÷ 760°C :± (0,1% reading + 0,5°C)
Sampling rate 1 time per second
Display Dual display LCD
Memory capacity 8000 records data
Main features °C / °F key selection
Average, Max, Min. read value key selection
T1, T2, T1-T2 key selection
Hold function key to freeze display over last reading
Show of data and time
Timer
RS232 serial interface to download recorded data over PC
Power supply Nr 1 battery 9V (incluse on packaging)
Battery life: approx. 50 hours (with alkaline battery)
Dimensions 145 x 68 x 35mm
Weight Approx. 235 gr with battery
Packaging English instruction manual, carry case, battery, data acquisition software for Windows XP/2000/ME environment, RS232 cable
For K or J temperature sensors, please see the www.italcoppie.it web site
