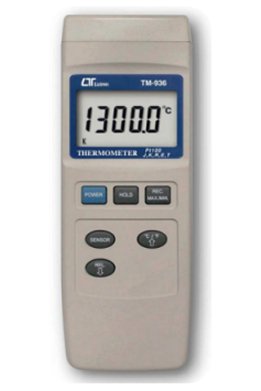

THERMOCOUPLE OR PT100 (TM936)


Digital thermometer for Pt100 or thermocouple K/J/R/E/T input. It's possible monitor only one channel (Pt100 or TC) a time.

Technical data





Environment range Temperature:0÷50ºC
Humidity:0%÷80% (non condensing)
Input One Pt100 DIN IEC751
One Thermocouple type K,J,T,E,R
Temperature range Pt100:-50.0÷850.0ºC
Thermocouple K:-100.0÷1300.0ºC
Thermocouple J:-100.0÷1150.0ºC
Thermocouple T:-100.0÷400.0ºC
Thermocouple E:-100.0÷900.0ºC
Thermocouple R:0÷1700ºC
Accuracy @23ºC ±5ºC Pt100:±(0.2% +0.5ºC)
Thermocouple K,J,T:±(0.2% +0.5ºC)
Thermocouple E:±(0.2% +0.8ºC)
Thermocouple R:±(1% +5ºC)
Sampling time Approx. 1 for second
Display 5 digit LCD, dimensions 51x32mm
Main feactures 1º or 0.1º key selection
ºC or ºF key selection
HOLD key to freeze the display reading value
Store of Max/Min value
Input offset adjustment
Low battery indication
Overrange or broken sensor indication
Auto power-off
Selection channel key
RS232 for personal computer link
Battery Standard 9V PP3 type
Electrical feeding Approx. 11 mA
Size 195 x 68 x 30mm
Weight 220 gr.
Standard accesory English operation manual
Optional accessory RS232 cable + application software, windows version
For PT100 or thermocouple input sensors, please see the www.italcoppie.it web site
