RTD INSERT
RESISTANCE TEMPERATURE DETECTOR INSERT TO DIN 43762
RTD inserts manufactured using densely packed magnesium oxide insulated stainless steel sheathed cable, with several spring loaded accessories with centerline of 33 mm between M4 fixing screws, for mounting in DIN style connection heads.

Technical data




Sensing element: single RTD 1 Pt 100 ohm at 0°C or duplex RTD 2 Pt 100 ohm 0 °C to IEC 751 class B; class A; class AA (only for single element inserts with 4 wires)
Type of construction: With densely packed magnesium oxide insulated cable
Sheath material: AISI 316 s.s.

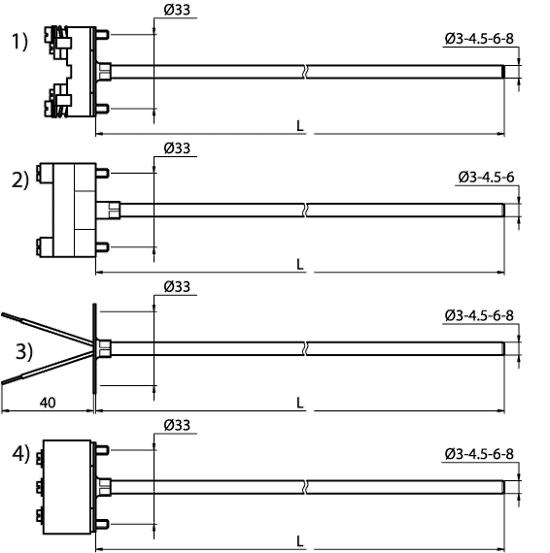

Manufacturing lengths 'L' (mm): from 100 mm to 1500 mm with 5 mm stepping Superior lengths upon request
Temperature range: Class B: -50 ÷ 500°C
Class A: -30 ÷ 350°C
Class AA: 0 ÷ 250°C
Minimum bending radius: 3 times the outer diameter (except the sensing tip which length is ~ 30 mm)

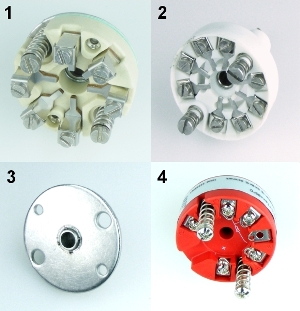

Mounting accessories: Ceramic terminal block
Integral type Nylon terminal block
Round transmitter mounting plate with 40 mm flying leads or 4 ÷ 20 mA transmitter (type and range to be specified)
All above are inserts to DIN 43762, i.e. suitable for mounting in connection heads with centerline between holes of 33 mm
Insulation resistance: 100 M ohm with 100 Vd.c.
Marking: Each insert is permanently marked with the exact ohmical calibration test valve at 0°C, the manufacturing date and traceability code.
