TWIN PID - R + CONTINUOUS EXIT
There are no translations available

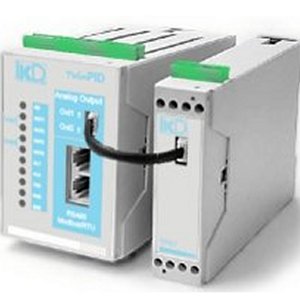

RELE' OUTPUT TwinPID + TPRT CONTINUOUS OUTPUTS MODULE
PID double regulator for installation from back-panel on DIN bar, with MODBUS-RTU field bus.
Regulation output for relay, re-transmission in V or mA.


Technical data




TwinPID technical features All data are reported in "TwinPID with relay output"
Re-transmission module TPRT analogical re-transmission module
Electrical feeding Auto-feeding from TwinPID
Insulation Galvanic insulation from TwinPID inputs
Accuracy ±0.25% V.F.S.
Re-transmission type Customizeable as: 0/2-10 V
0/1-5 V
0/4-20 mA
Re-transmission Selection between:
- controlled variable
- set point
- regulation output
- direct value
Environmental conditions Temperature: 0°C ÷ 50°C
Humidity: 10% ÷ 95% not condensing
