LC series
Double display low-cost microprocessor regulator
Process regulator (48x48 front-display) with PID algorythm and autotuning and one alarm.
Input: thermocouples or for RTD Pt100
Main Output: Relay or logic


Technical data

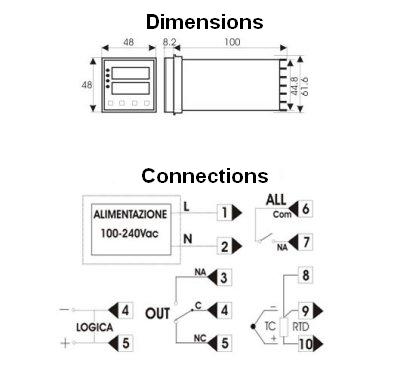

Dimensions 48x48x100mm
Panel cut 45x45mm
Power supply Switching 100÷240 Vac
Consuption 7W
Environmental working conditions Temperature: 0°C ÷ 50°C
Humidity: 45% ÷ 85% (not condensing)
Degree of frontal protection IP 65
Installation class and pollution degree II
Input Thermocouple type "K" (range 0°C ÷ 1372°C)
Thermocouple type "J" (range 0°C ÷ 1200°C)
Thermocouple type "R" (range 0°C ÷ 1769°C)
Thermocouple type "S" (range 0°C ÷ 1769°C)
Thermocouple type "B" (range 0°C ÷ 1820°C)
Thermocouple type "E" (range 0°C ÷ 1000°C)
Thermocouple type "N" (range 0°C ÷ 1300°C)
Thermocouple type "T" (range0.0°C÷400.0°C)
Pt100 3 wire (range -199.9°C ÷ 649.0°C)
Measurement accuracy at 25°C 0,3% FS ±2°C (a 25°C) for thermocouple input
0,2% FS (a 25°C) for PT100 input
Regulation output Relay SPDT 5 A at 250 Vac, or logic 15Vdc ±20% 20mA max. Load
Alarm Nr. 1 relay 5 A at 250 V AC, programmable by software as "maximum" and "minimum" warning, maximum and minimum deviation
Other features PID control (with possibility of excluding integral and derivative action)
ON / OFF
Autotuning
3 levels of programmation parameters access
Packaging Instruction manual in English and panel fixing set
