MV series (96x48)
Digital indicator, programmable with 2 thresold alarms and 4-20mA retransmission

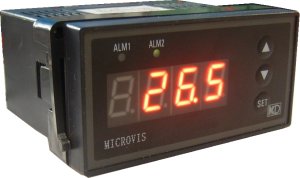

MicroVis (MV) is an indicator/interceptor with 4 digit display (from -1999 to 1999). It is possible to set the input type, the scale, the input offset, the decimal point visualization, the threshold of the 2 warnings and their hysteresis.
Programmation parameters are protected with a password (2 access levels).
Input signal (0/4-20 mA) re-transmission makes it a complete instrument, suitable for most kind of plants.


Technical data




Environmental conditions Temperature: 0°C ÷ 50°C
Relative humidity: <85% non-condensing
Dimensions 96 x 48 x 80 mm (panel cut-out: 92 x 45 mm)
Installation to panel with mounting bracket.
Degree of protection IP 65
Electrical feeding 24 V AC ±10%, 50-60 Hz, 1.5 VA of power absorbed
110 ÷ 243 V AC, 50-60 Hz, 3 VA of power absorbed
Input Multiple input selectable between:
- Pt100 with 3 conductors
- thermocouple "K", "J", "E", "T", "R", "S" type
Linear input:4-20 mA, 0-10 V
Input sensor temperature range Pt100: -199.9°C ÷ 600.0°C
Thermocouples type:
"K" : -30° ÷ 1300°C
"J" : -30° ÷ 900°C
"E" : -30° ÷ 700°C
"T" : -180° ÷ 400°C
"R" : -30° ÷ 1700°C
"S" : -30° ÷ 1600°C
Input signal accuracy ±0.5% F.S.V. ±1 digit

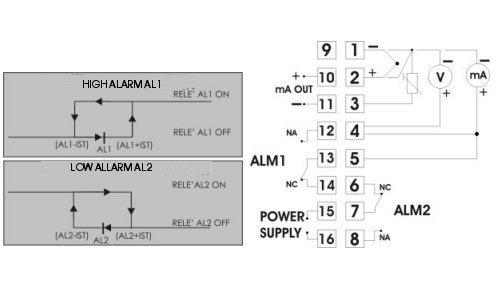

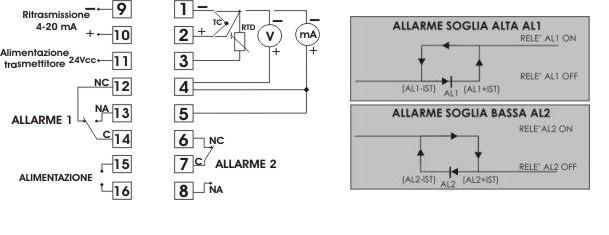

Input signal re-transmission Nr. 2 SPDT relay, 5A at 250 V AC (one as warning of maximum and one as warning of minimum)
Visualizations 4 digits, 13mm height, 2 red LEDs to indicate the warnings status
Keyboard polycarbonate, with 3 keys
Packaging The packaging contains:
- instruction manual in italian language
- panel fixing set (mounting bracket)
