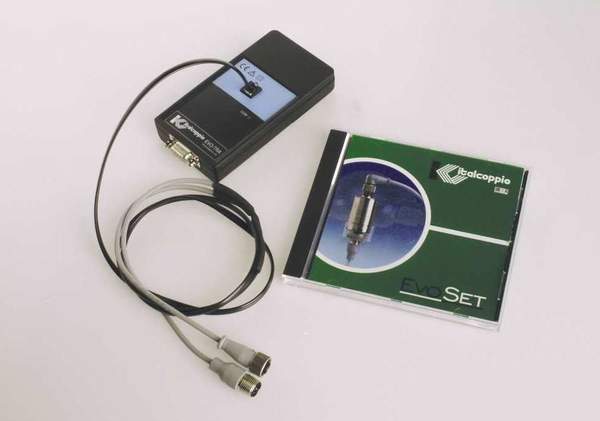

| CONFIGURATION
KIT FOR EVO TRA PRODUCTS |
|
| With a PC, it allow to configurate all the
functions parameters through the same line used for the 4...20mA loop
|
|
|
|
| Technical data |
|
|
|
|
|
|
| Interface |
PC connection
throug serial port RS232 with a 9 pin connection cable included in the
kit |
| Power supply |
Through 9 V PP3
type battery |
| EvoTra device
connection |
Through M12
female connector |

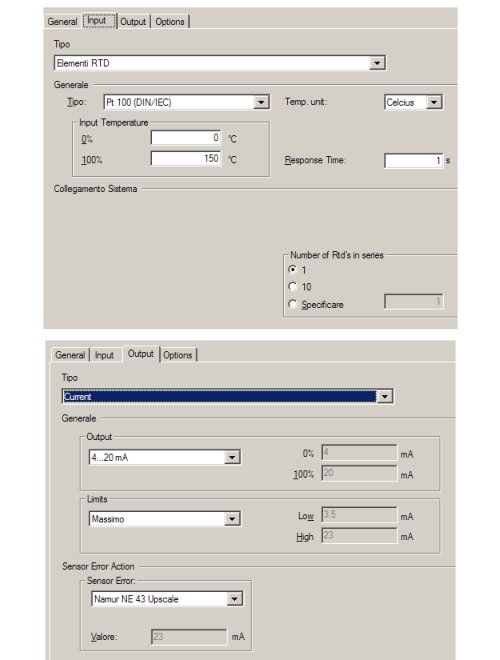

| Programming Software |
EvoTraSet for
Windows® 98/Xp/NT/2000 |
| Configurable
parameters |
Range, unity of
measure, response time, RTD type, warning on sensor error |
| Calibration |
Calculation of
the linearisation curve based on two reference points inside the scala
range | |
|
ITALCOPPIE
