Sensing element |
RTD or NTC. RTD version has the 4÷20mA output option. |
Temperature range |
-35°C÷90°C |
Min. insulation resistance |
100 MOhm at 100 Vdc |

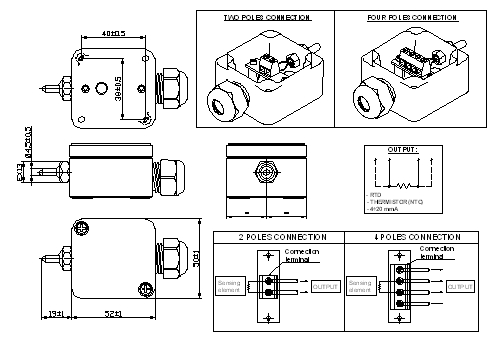

Connection terminal |
2 or 4 POLES |
Dimension of cable for cable gland |
Ø5 ÷ Ø10 mm |
Degree of protection |
IP65/IP67 |
Screw for wall set |
Self-threading 3.5 screw (for ø6 screw-plug) |
Inter-axis of screws for wall set |
38mm x 40mm |
