PROBE FOR BLAST-CHILLERS
PROBE FOR PRODUCT INTERNAL MEASUREMENTS WITH A SYSTEM (IP67) FOR EXTERNAL COMMAND

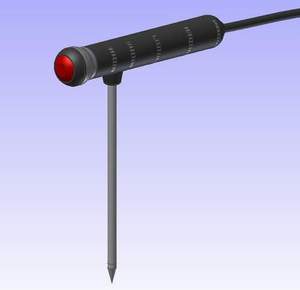

Probe for product internal measurements in cooling processes. Its thermoplastic alimentary rubber body bestows a high degree of environmental protection which remains time-stable. The probe is provided with a system for external command directly activated by a button on the handle. Sensing element has a needle tip in order to make penetration into the product easier.

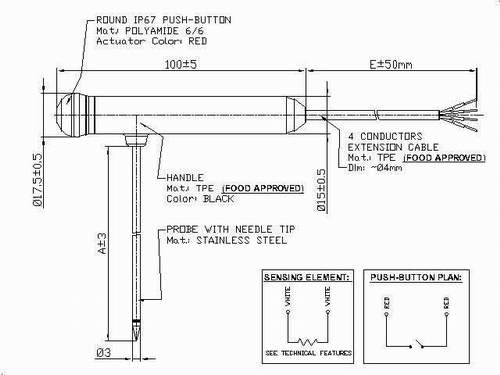

Technical data




Sensing element RTD Pt100 or Pt1000, other on demand
Temperature range -40°C ÷ 100°C
Degree of protection IP67
Needle tip dimension and material Ø3 mm AISI 316
Min. insulation resistance 100 MOhm @ 100 V dc
Reliability of button functionality 500.000 switchings
Handle material Thermoplastic rubber (TPE) suitable for food contact
Extension cable 4 conductors cable with PP primary insulation and TPE secondary insulation, the latter suitable for food contact
