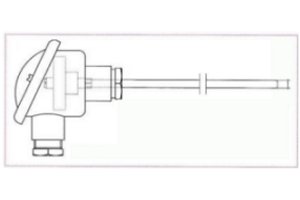

| THERMOCOUPLE WITH CONNECTION HEAD |
 |
| Thermocouple probes with connection head manufactured using packed magnesium oxide insulated stainless steel sheathed cable |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Sensing element: |
Single or duplex element thermocouples type K or J according to IEC 584 class 2 (ASTM E 230) |
| Type of construction: |
with densely packed magnesium oxide insulated cable and ungrounded hot junction |
| Sheath material: |
Thermocouple K: INCONEL 600
Thermocouple J: AISI 304 s.s. |
| Temperature limit: |
Thermocouple K: 1.150°C
Thermocouple J: 600°C
|
| Minim. bending radius: |
3-times the outer diameter 'd' |
| Manufacturing Lenght 'L' (mm): |
From 50 to 1.500 (with 5mm stepping)
From 1.500 to 3.000 (with 25mm stepping)
From 3.000 to 5.000 (with 50mm stepping)
From 5.000 to 10.000 (with 100mm stepping)
From 10.000 to 20.000 (with 500mm stepping)
From 20.000 a 50.000 (with 1mt stepping)
|

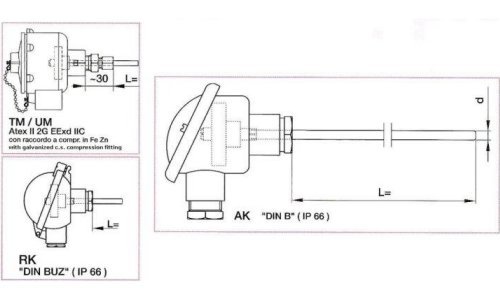

| Connection head: |
DINB in alluminio (uscita PG 16)
DIN BUZ in alluminio (uscita PG 16)
Atex II 2G EExd IIC in alluminio (uscita 1/2")
Atex II 2G EExd IIC in alluminio (uscita 3/4") |
| Electrical connection: |
Integral type Nylon terminal block
TRANSMITTER 4÷20mA (type and range to be specified) |
| Insulation resistance: |
100 Mohm with 100Vdc |
|
|
