| THERMOCOUPLE WITH COMPENSATED ''MINIATURE'' CONNECTOR |
 |
| Small diameter thermocouple probe with moulded on compensated connector which grants a reliable use. Especially suitable for applications requiring fast response time and minimum probe size (such as research laboratories, small machines, and so on...)" |
|
|
|
| Technical data |
| |
|
|
|
| |
| |
| Type of thermocouple |
Single element thermocouple type 'K' or 'J' according to IEC 584 class 2 (ASTM E 230) |
| Connection |

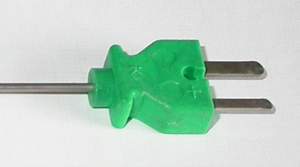

Compensated MALE 'MINIATURE' connector with body IN MOULDED Nylon according to ASTM E 1684-96
Temperature MAX 120° C (200° C for 60 seconds) |
| Insulation resistance |
100 M ohm with 100 V DC (100 M ohm with 50 Vd.c. for Ø0,25 mm and Ø0,5 mm probes) at room-temperature |
| Temperature limit |
1150°C for thermocouple 'K'
600° C for thermocouple 'J' |
| Sheath diameter 'd' (mm) |
ø0.25 / ø0.5 / ø1.5 |
| Sheath material |
INCONEL 600 for thermocouple type 'K'
AISI 304 S.S. for thermocouple type 'J' |
| Minimum bending radius |
Three times the outer diameter |
| Type of costruction |
With densely packed magnesium oxide (MgO) insulation and ungrounded hot junction |
| Accessories |
Miniature female connectors
Compensated extension cables with miniature connectors |
|
|
