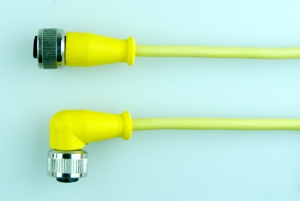

CABLE WITH M12 COMPENSATED CONNECTORS
Extension cable with MOULDED ON (IP-67) connector with M8 female screw lock. For exclusive use with TCSV8 thermocouples
DESCRIZIONE

Technical data




Suitable for probes type - TCSV 12
Calibration type "K" or "J" according to IEC 584, ANSI, DIN COLOR CODE

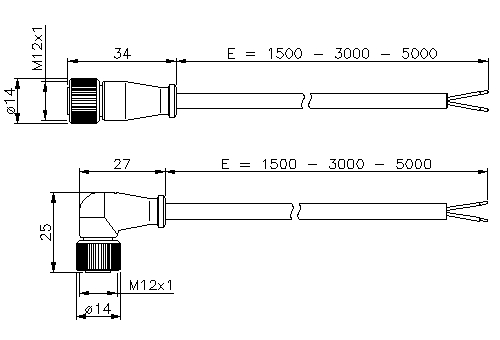

Connection Female connector, plug in and screw on type, with body in moulded Nylon and M12x1 metal thread (according to DIN-VDE 0627)
Degree of protection IP 67
Temperature limit 90°C for connector
180°C for cable
Cable type Stranded wires 2x0,25 mm² (24 AWG) with single conductor and overall silicon rubber insulation
